Eunoia

Area-proportional Euler and Venn diagrams for Julia.

Eunoia fits and draws diagrams in which the areas of overlapping shapes (circles, ellipses, squares, or rectangles) are made to match a set of input quantities as closely as possible. It is the Julia binding for eunoia, a Rust library, and a sister package to the Python binding eunoia-py.

The fitting engine ships as a native library reached through a small C ABI; its binaries are delivered as a lazily-downloaded Julia artifact, so installing the package needs no Rust toolchain.

Installation

Until Eunoia is registered in the General registry, install it from GitHub:

using Pkg
Pkg.add(url = "https://github.com/jolars/Eunoia.jl")

Quick start

using Eunoia

# Euler diagram from exclusive areas
fit = euler(Dict("A" => 5, "B" => 3, "A&B" => 1.5))

# Canonical Venn diagram with ellipses
venn(["A", "B", "C"]; shape = "ellipse")

euler returns an EulerFit and venn a VennFit, both carrying the fitted shapes, original/fitted values, per-region residuals and region_error, the overall loss, and (for complement fits) a container. See the API Reference for the full surface.

Plotting

Rendering lives in a Makie package extension that loads automatically once a backend is imported:

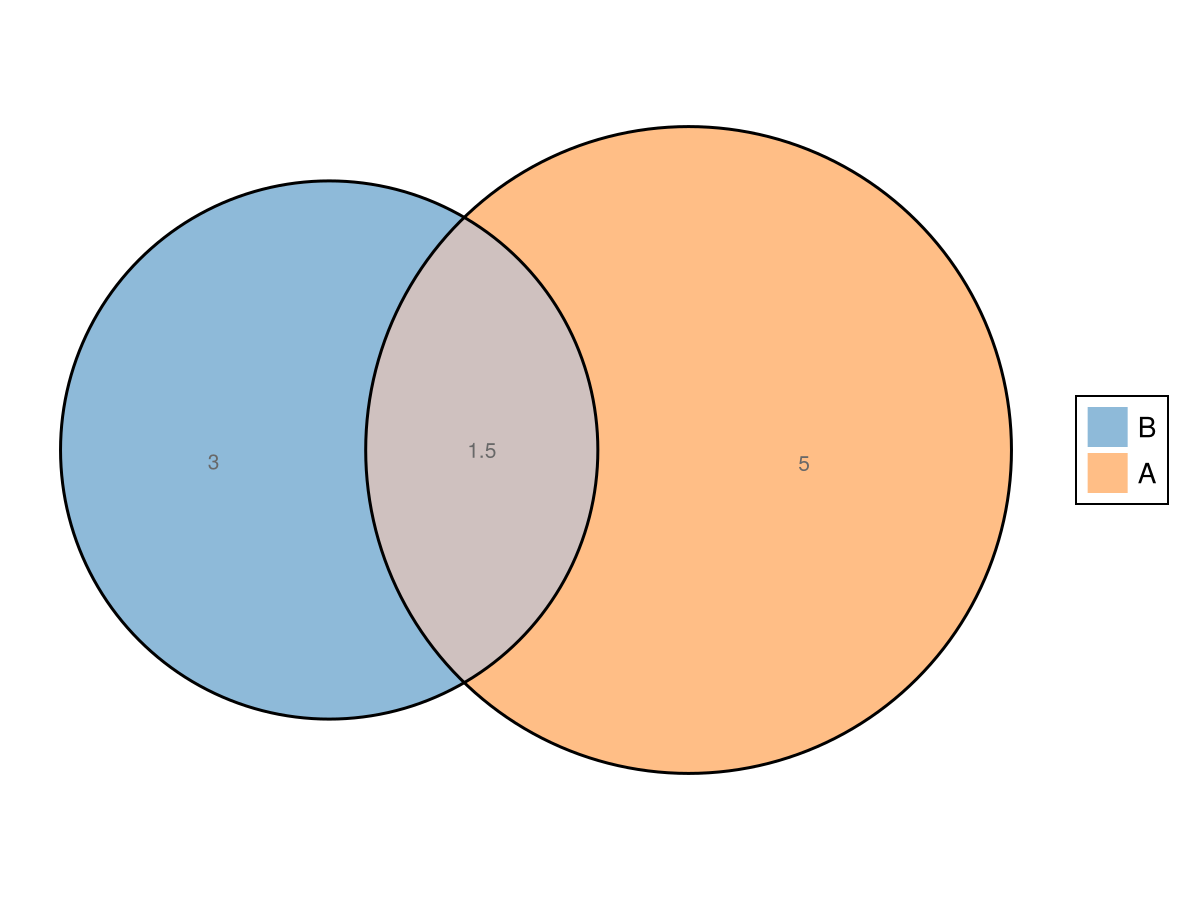

using Eunoia, CairoMakie

fit = euler(Dict("A" => 5, "B" => 3, "A&B" => 1.5))
eunoiaplot(fit; quantities = true, legend = true)

See the gallery for a tour of the plotting options.
